SATEL
SATEL, Finska, vodeći je europski proizvođač radio modema za prijenos podataka. Obitelj SATEL modema obuhvaća niz robusnih radio modema i telemetrijske opreme prikladne za različita okruženja i korisničke zahtjeve.
SATEL-B2-TR489 EU
The SATEL-B2-TR489 EU radio modem operates in the license-free pan-European frequency band (869 MHz), so no additional authorization is required for use. It is ideal for data transmission in telemetry and alarm systems. It supports communication on channels in the 869.40–869.65 MHz frequency range, with a data rate of 19.2 kbit/s and a bandwidth of 25 kHz, at a maximum power output of 0.5 W. The SATEL-B2-TR489 EU is also a compatible replacement for older SATELLINE-EASy 869 / 865 modem models.
SATEL-EASy+
The SATEL-EASy+ radio modem integrates a UHF radio and a serial modem into a compact aluminum housing. It is ideal for data transmission between controllers and monitoring systems, offering transparent communication according to industrial protocols such as Modbus RTU, Profibus and others. It operates in the 403–473 MHz frequency range, with a data rate of 19.2 kbit/s at a bandwidth of 25 kHz. An optional LCD control display is available to simplify parameter configuration in the field.
SATEL-EASy Pro+
The SATEL-EASy Pro+ radio modem features high transmission power of up to 35 W, making it suitable for long-distance data transmission. It operates in the 403–473 MHz frequency range, with a data rate of 19.2 kbit/s. Its special IP67-rated enclosure makes it ideal for harsh environments, as it can operate in low temperatures and high humidity.
SATEL Proof-TR489
The SATEL Proof-TR489 is built for the most demanding environments, offering the highest level of protection with an IP69K rating. It is resistant to extreme temperatures and high-pressure water. Housed in a rugged casing, this powerful modem operates in the 403–473 MHz, 869.4–869.65 MHz and 902–928 MHz frequency ranges. Its durable design makes it ideal for applications such as machine control, smart agriculture and maritime systems.
Program Manager Emerson and Opto 22
Jaroslav Toličič, M.Sc.
Vaisala
Vaisala je svjetski lider u senzorima i rješenjima za mjerenje vlažnosti i temperature.
HMD62
A precision duct sensor for measuring temperature and relative humidity in building ventilation and energy systems. The sensor is resistant to various chemicals and dust.
Features:
Temperature measurement range: -20 … +80 °C (+/- 0,1 °C)
Humidity measurement range: 0 … 100 % RH (+/- 1,5%)
Active output: 4… 20mA
Available with a calibration certificate
HMT120
Precision spatial sensor for measuring temperature and relative humidity for particularly demanding environments. The sensor is resistant to a variety of chemicals and can be mounted at a distance of 3-10m from the central measuring unit.
Features:
Temperature measurement range: -40 … +80 °C (+/- 0,2 °C)
Humidity measurement range: 0 … 100 % RH (+/- 2%)
Active output: 4… 20mA
Senso: in housing or with 3/5/10m lead
IP65 enclosure
Supplied with calibration certificate
Available with optional display
HMT370EX
A precision room sensor for measuring temperature and relative humidity in an IP65 corrosion- resistant housing, suitable for extremely demanding environments with high exposure to temperature, humidity and pressure. The sensor is resistant to aggressive chemicals and can also be installed in explosive environments (EX Zone 0).
Features:
Temperature measurement range: -70 … +180 °C (+/- 0,1 °C)
Humidity measurement range: 0 … 100 % RH (+/- 0.8%)
Active output: 4… 20mA
Sensor: in housing or with a 2, 5 or 10m cable
IP66 housing
Available with a calibration certificate
Program Manager Emerson and Opto 22
Jaroslav Toličič, M.Sc.
S+S Regeltechnik
S+S Regeltechnik iz Njemačke proizvodi kvalitetne senzore za razne primjene u industriji i zgradarstvu. Dostupan je širok raspon senzora temperature, vlažnosti, tlaka, svjetlosti i kvalitete zraka. Osim robusnosti i preciznog mjerenja, senzori imaju i mogućnost lokalnog podešavanja mjernog raspona. Senzori se proizvode i kalibriraju u Njemačkoj, a na zahtjev kupca senzori se isporučuju i sa službenim certifikatom o kalibraciji.

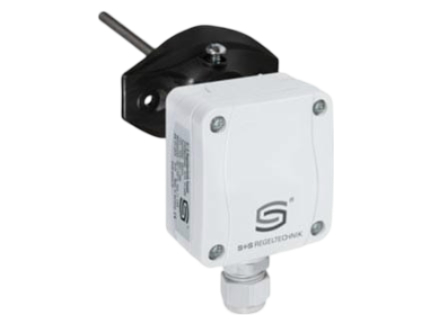

Senzor temperature kanala (TM65_MF)
Temperature measurement range: -20 … +150 °C
Active output: 4… 20mA
Coil lengt: 50 – 400 mm
8 adjustable temperature zones
Optionally supplied with calibration certificate
Uronski temperaturni senzor (TM65_TH-VA)
Temperature measurement range: -20 … +150 °C
Active output: 4… 20mA
Coil lengt: 50 – 400 mm
Stainless steel threaded sleeve for temperature sensor
8 adjustable temperature ranges Optionally supplied with calibration certificate
Senzor sobne temperature (RTM1)
Temperature measurement range: – 0 … +50 °C
Active output: 4… 20mA

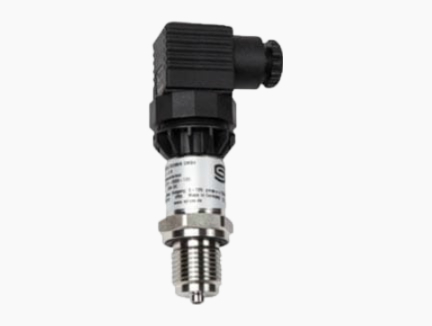

Senzor tlaka za tekućine (SHD)
Liquid pressure measurement range: 0 … 2,5/6/40 bar
Active output: 4… 20mA
Senzor diferencijalnog tlaka u kanalu (PREMASGARD 11XX)
Scope of measurement:
0 … 1000 Pa/-1000 … 1000 Pa
0 … 5000 Pa/-5000 … 5000 Pa
4 adjustable measurement areas
Active outpu: 4… 20mA
Termostat protiv smrzavanja kanala (FST-1)
Switching range: -10 … +12 °
Adjustable switching area
Capillary length: 6m
Senzor diferencijalnog tlaka u kanalu (PREMASGARD 7110)
Scope of measuremen:
0 … 100 Pa/-100 … 100 Pa
Active output: 4…20mA
Program Manager Emerson and Opto 22
Jaroslav Toličič, M.Sc.
Honeywell/Evohome
Evohome je sustav dizajniran za regulaciju temperature u pojedinačnim kućama i stanovima. Omogućuje vam regulaciju temperature svake prostorije pojedinačno, bilo prema vašem rasporedu ili odabranom načinu života (npr. odsutnost, zabava itd.). Ima ugrađene napredne algoritme za regulaciju temperature koji doprinose dobrobiti, udobnosti stanovanja i uštedi energije.
EVOHOME MOBILE paket (ATP921R3100)
- ATC928G3000 - Evohome central unit color display (868MHz), built-in WiFi module for remote access via the internet and smartphones (Google play & Apple Store),
- ATF800 - Desktop power supply unit for central unit,
- BDR91 - Relay module for remote switch-on of the furnace or heat pump.
PRICE: 450,00 € (incl. VAT)
EVOHOME središnja jedinica s zaslonom u boji (ATC928G3000)
Centralna jedinica s zaslonom u boji osjetljivim na dodir, bežična komunikacija od 868 MHz, 1 do 12 temperaturnih zona
PRICE: 308,00 € (incl. VAT)
EVOHOME upravljački pogon hladnjaka (HR92)
Bežični regulator radijatora, na baterije 2×1, 5V AA, pogodan za sve standardne termostatske ventile (Oventrop, Herz, Danfoss, …)
PRICE: 109,00 € (incl. VAT)
EVOHOME paket za 4 zone regulatora-pogona radijatora (HR924)
4 x bežični regulator radijatora, na baterije 2×1, 5V AA, pogodan za sve standardne termostatske regulatore (Oventrop, Herz, Danfoss, …)
PRICE: 376,00 € (incl. VAT)
EVOHOME zidni termostat s LCD zaslonom (Y87RF2024)
Bežična sobna korekcijska jedinica ili samostojeći termostat s LCD zaslonom, baterije 2×1, 5V AA
PRICE: 216,00 € (incl. VAT)
EVOHOME relejni modul za daljinsko uključivanje peći ili toplinske pumpe (BDR91)
Bežični relejni modul za daljinsko uključivanje peći ili toplinske pumpe, 24…230 V AC, 5A (3A)
PRICE: 108,00 € (incl. VAT)
EVOHOME gateway modul za daljinski pristup (RFG100)
Gateway modul za udaljeni pristup putem interneta i pametnih telefona (Google Play i App Store)
PRICE: 102,00 € (incl. VAT)
Bežični regulator podnog grijanja (HCC100M2022)
PRICE: 625,00 € (incl. VAT)
EVOHOME sučelje za montažu centralne jedinice (ATF600) na zid
Sučelje za ugradnju u duboki ormar fi60 i napajanje 230 VAC
PRICE: 60,00 € (incl. VAT)
EVOHOME sučelje za instalaciju centralne jedinice (ATF800) na radnu površinu
Sučelje za montažu/instalaciju na radnu površinu, priključni kabel uključen, napajanje 230 V
PRICE: 67,00 € (incl. VAT)
Za konzultacije, ponudu ili ponudu obratite se:
If you buy an Evohome system, the price includes 2 hours of training and system configuration!
Service: Metronik d.o.o. Ljubljana and Metronik Sustavi d.o.o. Zagreb.
Solcon
Solcon soft starteri dizajnirani su za glatko pokretanje i zaustavljanje asinhronih motora, značajno smanjujući struju pokretanja i poremećaje u mreži. Kontroliranjem pokretanja i zaustavljanja, motor i opterećenje mogu se precizno uskladiti, sprječavajući mehanička preopterećenja poput vodenog udara, prenaprezanja remena i prekomjernog momenta na spojkama i osovinama. Solcon soft startereri također besprijekorno rade u nestabilnim električnim mrežama, što ih čini prikladnima za upotrebu u rudnicima, brodogradnji, vodovodnim sustavima i industriji.
iStart
iStart is Solcon’s latest and most advanced digital soft starter, featuring a built-in bypass contactor and two or three-phase control. Its compact, versatile units incorporate advanced starting and stopping characteristics, providing optimal solutions for a wide range of applications. A comprehensive range of motor protections ensures long-term, reliable operation.
- Range 17-430A, 208-690V
- The possibility of state-of-the-art communication protocols
- Multilingual operating system
- Real-time processes, on-line 99 events or fault records (also for I and U)
- Optimized for starting high efficiency engines (IE3)
- The possibility to start in 2-phase mode in case of a fault in one of the phases (this is short-circuited)
- Option to add a cooling fan to increase capacity (sizes A, B, C)
- Basic, Professional and Expert set-up menus
- User-configurable measurement and monitoring of 3-phase voltages and currents and power factor
- Automatic restart for selected faults - "Auto reset"
- Three thermistor inputs available
- Automatic frequency adjustment 45-65 Hz
- In-line and in-triangular connection
- 110-220 V AC/DC universal control voltage (sizes A, B, C),
- Three current transformers
Typical applications:
- Pumps of all types
- Compressors and refrigerators
- Conveyor belts
- Mixers
- Fans and centrifuges
- Hydraulic systems
- Starting with a weak power source
Solstart
Analogni minijaturni soft starter za manje zahtjevna opterećenja poput ventilatora i vodenih pumpi do 37 kW.
- Range 8-58A, 230-600V
- Two-phase control with integrated bridging
- Start/stop with voltage-free contact
- Relay output at the end of acceleration (models 31-58A)
- Compact design
- DIN rail mounting (optionally above 31A)
- Max. 10 starts per hour
- Bridging contactor
RVS-DN 1000V i 1200V
Specijalna verzija RVS-DN 150-900kW, 105-820A / 1000V, razvijena za rudarsku industriju sa značajkama:
- Unique isolation between the control and power sections
- Reliable operation in the harshest environments (mines)
- Master-slave applications for driving multi-motor transport systems
- Auto-reset function increases the availability of the device
- Three output relays
- Thermistor input
- Analogue output
- Rs 485 with modbus rtu or modbus plus protocol
- User-friendly keyboard that allows fine-tuning
- Led alarm
- Lcd screen for easy troubleshooting
- Performance statistics
- Motor protection
- Possibility of operating with a generator
RVS-DN
Digitalni soft starter s naprednom zaštitom motora za pokretanje najzahtjevnijih pogona kao što su mlinovi, rotacijske peći i veliki pogoni snage od 4 kW do 3000 kW.
- Wide application range: 8 - 3500A, 230 - 690V
- Robust construction
- Superior starting and stopping capabilities
- Complete engine protection
- Parameter settings via the menu
- Maximum operating temperature: up to 60°C
- LCD display and keypad
- LED alarm
- Full range of options
- Checking the insulation strength of the cables and the motor
- Modbus / Profibus / TCP-IP communication
- Thermistor input/analogue output
Typical applications:
- Pumps of all types
- Fans, centrifuges
- Compressors and refrigerators
- Hydraulic systems
- Conveyor belts
- All types of mills and crushers
- Rotary kilns
DriveStart
DriveStart is one of the first soft starters with medium-voltage IGBT technology, tailored for applications requiring low starting currents and/or high starting torque. Its superior design ensures reduced cost, power consumption and space while meeting the high demands of individual applications.
Typical applications:
- Pumps of all types
- Fans, blowers and centrifuges
- Conveyor belts
- Hydraulic systems
- All types of mills and crushers
- Compressors and refrigerators
- Mixers
HRVS-DN
Digital soft start for medium voltage (MV)
It was developed to meet the needs of the mining industry with features such as:
- Range 1500-15000V, 30kw to 60000kw
- Motor current rating 30 - 30000 A
- Cutting-edge technology (protected by patents)
- Full use of fiber optics for thyristor ignition and measurements
- Robust construction
- Unique drive starting and stopping capabilities
- Complete protection of the engine and apparatus
- Parameter settings via menus
- Special program for starting with a diesel generator
- Maximum operating temperature: 50°C
- Testable with a regular 400 VAC motor
- Each HRVS-DN passes the Partial Discharge Test
- Long lifespan
- Low speed and changing direction:
- The engine can be driven at 1/6 of rated speed for a set period (30 seconds),
- Automatic change of direction in critical situations,
- Typical applications: positioning, change of direction when the actuator is blocked, actuator maintenance
- Energy Save mode
- Reduction of output voltage in case of low drive load
- The magnetic field strength is reduced, and the current is thus reduced, while the secos Φ factor is improved
Typical applications:
- Unloaded reciprocating compressors
- Pumps of all types
- Fans, blowers, centrifuges
- Compressors and refrigerators
- Hydraulic systems
- Conveyor belts
- All types of mills and crushers
- Rotary kilns
Solbrake (mala i srednja poduzeća)
DC kočnica za brzo i meko kočenje trofaznih motora od 4kW do 315kW bez upotrebe mehaničkih kočnica.
- Application range 10 - 460 A, 230 - 690V
- No mechanical wear like conventional mechanical brakes
- Reduced braking time for loads with high inertia
- Adjustable braking time
- Automatic operation
- Increased security for staff and equipment
- Easy installation and setup
Typical applications:
- Machine tools
- No mechanical wear like conventional mechanical brakes
- Circular and band saws
- Stopping loads quickly and with high inertia
MPS-6
Kompaktni digitalni sustav zaštite pogona koji omogućuje praćenje svih trofaznih struja i kontrolu zbroja struja, učinkovito štiteći pogon od preopterećenja, pregrijavanja, problema s napajanjem i grešaka u upravljanju ili regulaciji.
- Advanced microprocessor technology
- True RMS measurement with a period of 0.5 mSec
- Display of current engine operating parameters and faults with history
- Overload warning (Time to trip)
- Programmable inputs and outputs
- RS-485 communication (Modbus) for parameter setting management and control
- Compact design, easy installation
The MPR-6/3 provides the following programmable protection functions with dual settings (alarm and trip) and adjustable time delay.
- Too long a start-up time,
- Max. number of starts per time unit,
- Underload (*)
- Increase in load
- Overload
- Short-circuit protection (*)
- Thermal capacity level (*)
- Current imbalance (*),
- Sum of currents fault (*),
- Flow instability,
- PTC/NTC thermistor (*) drive temperature too high,
- Two external faults (NO/NC contact),
- (*) Double settings.
Typical applications:
- Medium-sized drives for low voltage
- Smaller drives for medium voltage
- Particularly suitable for drives in the process industry
- Critical drives that require special protection and monitoring
Voditelj programa Danfoss VLT/Vacon, Merz i Solcon
Gorazd Bernik, M.Sc.
MERZ i KATKO
MERZ, a German company successfully operating since 1946, is a global manufacturer of high-quality electromechanical main and compact switches. With its partners, it is present in more than 40 countries worldwide. KATKO is a Finnish electrical industry company, specializing in designing, manufacturing, and delivering leading solutions for the electrical installation sector. At KATKO, they are pioneers of high quality electrical switches and other installation products.

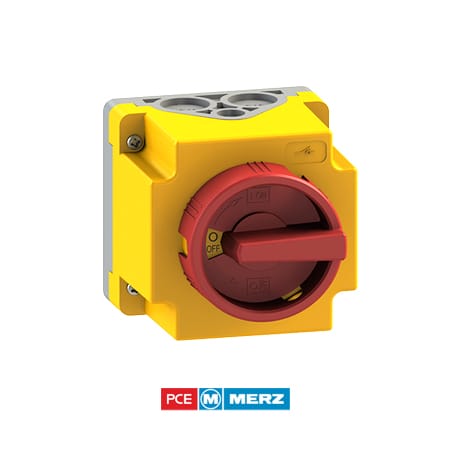

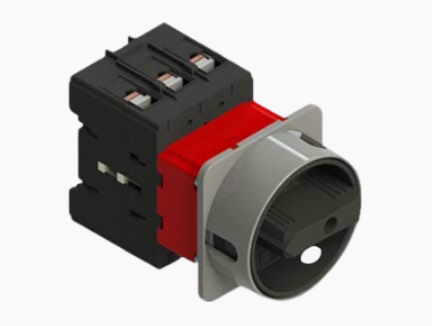

Glavni prekidači
The main switch is the cornerstone of every circuit. Its function is to disconnect the machine and all electrical connections from the mains during cleaning, maintenance and repair, as well as when the machines are idle for long periods. It must comply with IEC/EN 60947-3 for user category AC23.
The position of the main switch shall be clearly indicated, either by a visible separation of the contacts (open position) or by a clear indication of the position. The main switch shall also be capable of being locked in the “Off” position to allow safe servicing. The switch may also be used as an emergency switch but must then be properly marked with a red handle on a yellow background.
Main (service) or emergency stop switches are available in a variety of mounting options, allowing a wide range of applications with rated currents from 10A to 125A. Switches can be three or four pole or, on special order, multi-pole and equipped with auxiliary contacts if required.
KATKO prekidači u kućištu od nehrđajućeg čelika
Posebna verzija prekidača za najzahtjevnije korisnike, s:
- Power range: 16-1600A and 16-160A (model with steel handle); IP66
- AISI 316L, acid-resistant (optional for model with polycarbonate handle)
- Designed for hygienic and other demanding environments
- Easy to install and to clean
- Rain protection with sloping top on RS models
- LKR1 stainless steel handle with optional lock or polycarbonate handle with three optional locks
- Tested according to IEC 60947-3
- Also available as EMC and EMC/EX protected
KATKO prekidači u kućištu od aluminija otpornog na toplinu
Posebna verzija prekidača za najzahtjevnije korisnike, s:
- Power range: 16-200A
- Two protection classes F200 3H (FR) and F300 2H (FR3)
- FR meets the F200 standard for smoke and heat EN 12101-3, 200 °C for 3 hours
- FR3 meets the F300 standard for smoke and heat EN 12101-3, 300 °C for 2 hours
- IP66: Housing types A2, A4
- IP65: Housing types A5, A6
- Locking option
- Door locking with release mechanism
- High corrosion and UV resistance
- Excellent for severe weather conditions
- Tested in accordance with IEC 60947-3
Kompaktni prekidači
Compact switches are available in a variety of mounting options, allowing a wide range of applications with rated currents from 16A to 630A. Switches can be three or four pole or, on special order, multi-pole and equipped with auxiliary contacts if required.
Odabirni ili preklopni grebenski prekidači
These switches are used for installation in control cabinets and distribution boards to control process variables in various buildings (residential and commercial buildings, hospitals, production halls, etc.).
They also allow direct control and operation of simpler machines or devices. Compact switches with different functionalities and rated current up to 10A are designed to enable the realization of applications for the control of various processes.
The ridge switches are available in different mounting options, allowing a wide range of applications with rated currents from 10A to 125A. The switches can be single or multi-pole and equipped with auxiliary contacts if required. They can also have a different number of positions depending on the requirements.
Prekidači sa posebnim funkcijama
DC Switches
DC switches are specifically developed for disconnecting loads in DC circuits. They are specially designed for photovoltaic applications. The product range includes types that can withstand currents from 10A to 160A and can safely disconnect open-circuit generator voltages up to 1500 VDC.
Undervoltage (UVR) switches
MERZ UVR switches with undervoltage tripping are available for a power range from 32A to 63A. An undervoltage switch (UVR) is an electromechanical device that automatically disconnects when the supply voltage drops below a certain value. In this case, the switch lever moves back to the OFF position.
Voditelj programa Danfoss VLT/Vacon, Merz i Solcon
Gorazd Bernik, M.Sc.
Danfoss/VLT
Danfoss VLT frekvencijski pretvarači su namjenski, pouzdani i jednostavni proizvodi koji zadovoljavaju zahtjeve industrijskih i građevinskih primjena te smanjuju ukupne troškove vlasništva. Danfoss frekvencijski pretvarači neovisni su o proizvođačima motora i mogu se prilagoditi bilo kojoj tehnologiji motora.

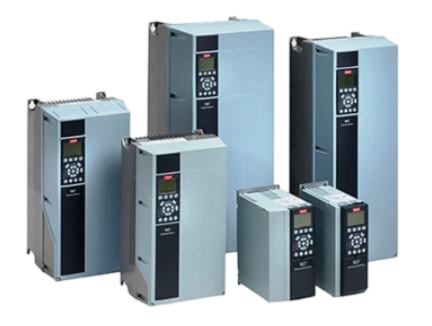

VLT® AutomationDrive FC 301 / FC 302
FC 301 / FC 302 je Danfossova najsnažnija serija frekvencijskih pretvarača, modularnog dizajna, prikladna za sve vrste primjena – od jednostavne regulacije brzine (FC 301) do vrlo naprednih, zahtjevnih primjena (FC 302).
- 0,37 kW - 1100 kW, 3 x (380-500) VAC
- 1,1 kW - 1400 kW, 3 x (525-690) VAC
- Mechanical protection rating: IP00, IP20, IP21, IP54, IP55, IP66
- Built-in RFI filter and DC chokes to prevent higher harmonics
- Standard features include USB, RS 485, BACnet, ASi
- Options: Profibus DP-V1, DeviceNet, CANopen, Ethernet/IP Profinet, I/O module, relay module, encoder interface, braking circuit, lacquered printed circuit board, for power above 90 kW: fuses, input circuit breaker
- Detachable graphic or numeric control display
- Built-in Safe Torque Off (FC 302)
- Applications for asynchronous, synchronous, reluctance and permanent magnet motors
VLT® AQUA Drive FC202
The VLT® AQUA Drive is a dedicated frequency converter for driving devices used in drinking water and wastewater technology. It contains many dedicated features such as protection against operation outside the intended operating range (burst pipe detection), protection against pump dry-running, “sleep mode” to prevent unnecessary pump operation and cascade control for efficient operation of a group of pumps.
- 0,37 kW - 1000 kW, 3 x (380-480) V
- 45 kW - 1400 kW, 3 x (525-690) V
- Degree of mechanical protection (depending on power): IP00, IP20, IP21/Type 1, IP54/Type 12, IP55/Type 12, IP66/Type 4x
- For constant and variable torque loads
- Built-in RFI filter and DC chokes to prevent higher harmonics
- Integrated USB and RS485 interface
- The modular design allows for retrofitting
- Detachable graphic or numeric display

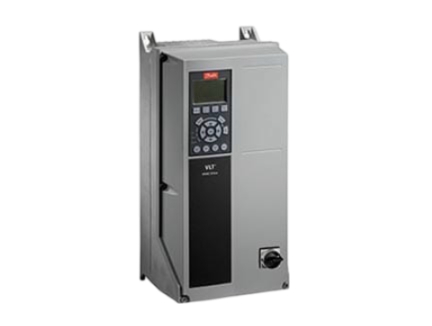

VLT® HVAC pogon FC102
VLT® HVAC Drive features applications that combine Danfoss’ extensive HVAC (Heating, Ventilation, Air Conditioning) know-how and experience. Built-in features that enable energy savings, easier monitoring and control, and system management and maintenance make these frequency converters among the best in the HVAC field.
- 0,18 kW - 2,2 kW, 1 x (200-240) V
- 0,37 kW - 22 kW, 3 x (380-480) V
- Mechanical protection rating: IP20
- Lacquered printed circuit board
- For constant and variable torque loads
- Integrated braking circuit
- PI regulation
- 150% overload for 1 min
- A clever logical contortionist
- Built-in RS485 interface with Modbus RTU protocol
- Detachable graphic control display (with or without potentiometer)
VLT® Midi Drive FC 280
Compact frequency inverter up to 22 kW. Multiple units can be installed side by side. USB interface for connection to a computer.
- 0,37 kW - 2,2 kW, 1 x (200-240) VAC
- 0,37 kW - 22 kW, 3 x (380-480) VAC
- Mechanical protection rating: IP20
- Lacquered printed circuit board
- Integrated braking circuit
- PI regulation
- 150% overload for 1 min
- Built-in PLC
- Built-in RFI filter and DC chokes to prevent higher harmonics
- Communication: modbus, CAN Open, Profinet
- Numeric or graphic control display
- Memory module

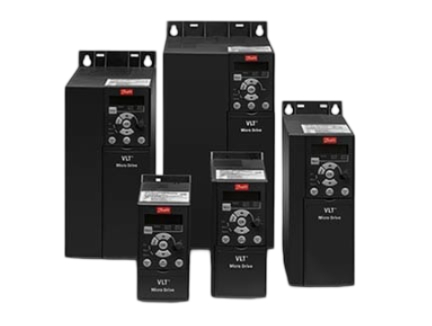

VLT® mikro pogon FC51
Industrial frequency inverter, extremely small dimensions, up to 22 kW. Highly reliable even in demanding applications.
- 1,1 kW - 1000 kW, 3 x (380-480) V
- 45 kW - 1400 kW, 3 x (525-690) V
- Mechanical protection rating: IP00, IP20, IP21, IP54, IP55, IP66
- Built-in RFI filter and DC chokes to prevent higher harmonics
- USB and RS-485 interface, BACnet, Modbus RTU, N2 Metasys, FLN Apogee, FC protocol built-in as standard
- Modular design allows for retrofitting
- Detachable graphic or numeric control display
- Specific features: flying start, sleep mode, fire mode
VLT® AAF napredni aktivni filteri (napredni aktivni filter)
A highly flexible solution for the cancellation of higher harmonic components. It can be installed centrally for the whole plant or for part of the plant, or individually for each frequency converter. With the use of a suitable transformer, active filters can also be installed in the medium voltage network. Advanced active filters analyze the harmonic situation of the system and compensate for the higher harmonics present. At the same time, they can also compensate for reactive power in the system.
- Rated voltage: 3 x (380-480) V
- Rated current: 190 A, 250 A, 310 A, 400 A
- Up to four units can be operated simultaneously
- Degree of mechanical protection: IP21 and IP54
- Integrated USB and RS 485 interface
VLT® Soft Start MCD 200
Compact soft-start, with built-in bypass contactor, designed to bridge power thyristor elements after the start-up process. There are two versions: MCD201 with voltage ramp and no motor thermal protection and MCD202 with current-limited ramp and motor thermal protection.
- 7,5 kW - 110 kW, 3 x (200-575) VAC
- Control voltage: 24 V AC or DC; 110-440 VAC
- Options: separate control module and communication modules (Profibus, Devicenet, Modbus RTU)
- Protection rating: IP00, IP20
- Integrated bypass contactor
VLT® Soft Start MCD 600
Superior soft-start performance for fixed-speed applications. The built-in bypass contactor ensures extremely high efficiency and harmonic-free operation at full speed, reducing power consumption and cooling requirements. A wide range of communication and various special application cards provide a wide range of application possibilities.
- Power range: 21 - 1250A
- Supply voltage: 3 x 200-525 VAC and 3 x 380-690 VAC
- Control voltage: 24 V AC or DC; 110-440 VAC
- Functions: pump cleaning, PowerThrough operation, calendar scheduling
- Protection rating: IP00, IP20
Voditelj programa Danfoss VLT/Vacon, Merz i Solcon
Gorazd Bernik, M.Sc.
Danfoss/Vacon
Vacon, finska tvrtka koja je dio Danfoss grupe od 2015. godine, jedan je od vodećih svjetskih proizvođača frekvencijskih pretvarača za regulaciju i upravljanje asinhronim i motorima s permanentnim magnetima. Vacon frekvencijske pretvarače karakteriziraju robusnost, jednostavno korisničko sučelje, modularnost i izuzetno male dimenzije.
Vacon 100 Industrijski
The new Vacon 100 series is suitable for a wide range of demanding industrial applications where there is a need to provide constant power and torque. The Vacon 100 is available for power ratings from 1.1 to 630 kW (400V) in IP21 and IP54 enclosures and features lacquered printed circuit boards with electronic components, allowing installation even in environments with high levels of condensation. An I/O signal card, RS485 and Ethernet interface are fitted as standard, expansion with up to three additional I/O or communication cards is possible, and a number of special functions for dedicated applications are built in. The built-in PLC functionality, using IEC61131-1 programming languages, allows free programming of additional functions.
Vacon 100 PROTOK
The Vacon 100 FLOW is the latest in a series of frequency inverters designed to control pumps and fans in industrial, building automation, drinking water and wastewater systems. Vacon 100 FLOW combines the main functionalities of Vacon 100 with additional, purpose-developed features. The new Vacon 100 FLOW series is available in a power range from 1.1 to 630 kW (400V) in IP21 or IP54 versions.
Embedded applications such as PID, HVAC, Multipump have ready-made parameter sets for easier setup and commissioning. The graphic display allows monitoring 9 values at the same time, as well as graphically displaying two signals. In addition to the standard input/output signals, a wide range of expansion cards are available to ensure that the requirements of the most demanding users are met.
The Vacon 100 FLOW already has RS485 and Ethernet interfaces built-in, and with the optional communication cards we have practically all current communication protocols at our disposal (Modbus RTU, Profibus, LonWorks, Modbus TCP, Profinet, BACNet, CAN…), which allows easy integration into all automation systems.
Vacon 20
The Vacon 20 series compact frequency inverters, available for power ratings from 0.25 kW to 18.5 kW, include additional PLC functionality in addition to all the usual features, offering the necessary flexibility to enable more complex machine control. Vacon 20 inverters are ideal for controlling pumps, fans, conveyors, packaging and washing machines.
Vacon NXP - hlađen zrakom
Available up to 3.2 MW, the NXP series frequency inverters are designed for applications where high robustness, dynamic response and high-speed control accuracy are required. They provide closed-loop vector control and full torque control at extremely low or zero speeds or rotational speeds. In addition to the current measurement system used in the NXS-series, the NXP-series has the ability to control and apply additional feedback from the motor. A more powerful microprocessor is also integrated for this purpose.
Vacon NXP - hlađen vodom
Vacon NXP water-cooled frequency inverters are the smallest water-cooled AC drives on the market. They are suitable for applications where installation space is limited, e.g. shipbuilding.
They are available for outputs of 5.5 kW to 5.6 MW and voltages of 380 to 690 VAC. They can also be used in industrial processes, paper mills, mines and ironworks.
Voditelj programa Danfoss VLT/Vacon, Merz i Solcon
Gorazd Bernik, M.Sc.
Opto 22
OPTO 22 je etablirani proizvođač robusnih I/O jedinica i distribuiranih upravljačkih sustava za industrijsku automatizaciju. Poznata po svojoj robusnosti, pouzdanosti i decentraliziranom pristupu, tvrtka je stekla priznanje u raznim industrijama diljem svijeta. Njihova glavna karakteristika su integrirana rješenja za upravljanje procesima temeljena na Ethernetu.
Groov EPIC Edge
Groov EPIC represents a new generation of control systems from Opto 22. It combines the features of a modular controller, display panel and communication device with secure connectivity to IIoT (Industrial Internet of Things) networks.
The Groov EPIC control system is based on a powerful quad-core processor with two independent Ethernet interfaces and two USB interfaces for serial communication. It includes a high-resolution touchscreen that serves as both a display panel and a tool for configuration and diagnostics. An additional HDMI output allows for the direct connection of an external display.
A complete set of I/O modules is available for the controller, offering up to 24 signal points with hot-swappable capability during operation. Its robust design allows operation in a temperature range from -20°C to 70°C.

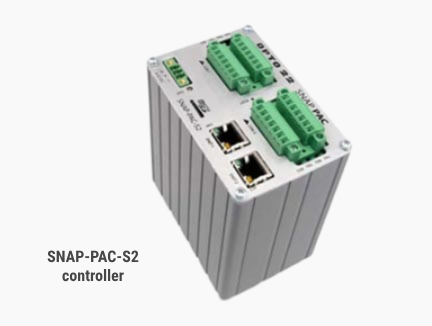

SNAP-PAC S
The standalone industrial controller SNAP PAC S, with its processing, memory and communication capabilities, is suitable for managing the most demanding processes. This controller allows data exchange with all Ethernet-programmable input/output units (PAC R1/R2 and PAC EB1/EB) on the network.
The controller has two fully separate Ethernet interfaces, enabling physical separation of segments (domains) in the control and monitoring systems. If needed, redundant configurations of controllers and programmable input/output units are also possible. Additionally, the controller is equipped with serial RS232/RS485 interfaces, which allow connection to older SNAP and G4 Mistic I/O units.
The controller contains 32 MB of RAM, 16 MB of Flash EEPROM and 8 MB of battery-backed RAM. It is highly capable, as it can simultaneously execute up to 32 flowcharts.
SNAP-PAC R1
The programmable input/output processor SNAP PAC R1 combines the features of an I/O unit and a control processor in a single device. The latest version, SNAP PAC R1 (GEN2 Edition), features a powerful processor, 256 MB of RAM, 16 MB of Flash EEPROM and 2 MB of battery-backed RAM, enabling control of even more demanding processes. It can simultaneously execute up to 32 flowcharts.
The PAC R can exchange data with other Ethernet I/O units (PAC R1/R2 and PAC EB1/EB) and standalone SNAP PAC S controllers on the network. It also includes two fully separate Ethernet interfaces, allowing for redundant control system configurations. Besides supporting all standard SNAP I/O modules, the SNAP PAC R also allows for the connection of up to eight serial communication modules in its base, providing a unique solution that simplifies the implementation of non-standard protocols. The SNAP PAC R1 is also a direct replacement for older SNAP PAC EB I/O units.
Ulazno-izlazni moduli
OPTO 22 offers a wide range of analog and digital I/O modules in the SNAP family, including modules with stand-alone PID control loops and serial communication modules with two RS232 or RS485 interfaces. The digital modules are optically isolated up to 4000 V and support up to four signals.
The analog modules are available in two, four or eight channels, with galvanic and optical isolation (4000 V). Two-channel input modules with galvanic isolation of the channels are also available. The broad range of I/O modules supports a variety of voltage, current and frequency signals, as well as Pt100 probes and thermocouples.
OPTO 22 input/output modules come with a lifetime warranty due to their high manufacturing quality.

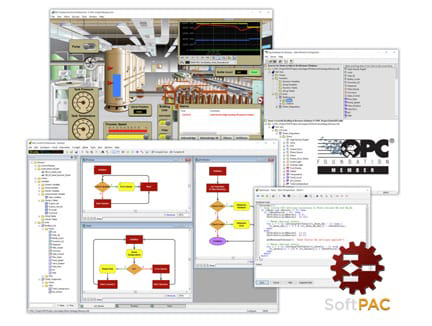

PAC Project™ softverski paket
Programming PAC R, PAC S and Groov EPIC Edge controllers is facilitated by the PAC Control software with flowcharts, while for more complex applications, OptoScript (a scripting language based on the C programming language) is also embedded. The PAC Control BASIC software is provided to the user free of charge with the purchase of a controller.
With the purchase of the PAC Project Professional software package, users receive additional tools, including the OPTO OPC Server. The package enables redundant and segmented Ethernet interface configurations, support for SNAP and G4 Mistic I/O units, and the migration of programs written with the older Opto Control software tool.
Program Manager Emerson and Opto 22
Jaroslav Tolčič, mag.
Emerson
Emerson je vodeći proizvođač opreme za automatizaciju sa širokim rasponom proizvoda, od kompaktnih programabilnih kontrolera, modularnih kontrolera i inteligentnih zaslonskih panela...
PACSystems
PACSystems (Programmable Automation Controllers) represent an advanced approach to controller development. By using a single software kernel and operating system across different controllers, users can develop application software with a single tool, Pac Machine Edition. This application software can be applied to various platforms depending on application requirements, allowing for a cost-optimized configuration based on current needs. Software migration between different controller platforms is also possible when application requirements change structurally. Upgrading controller hardware (new CPU modules) is easy since the application is portable due to the common software kernel and operating system. This makes upgrades inexpensive and guarantees long-lasting system functionality.
RX3i
The RX3i family of controllers is designed based on high-speed PCI bus technology. It features powerful processors, up to 64 MB of working memory and the ability to permanently store programs and variable values without the need to replace batteries. The RX3i family supports a wide range of input/output modules with hot-swap capability. RX3i processors make it easy to upgrade 90-30 family controllers while retaining all existing input/output modules. For more demanding applications, controllers are also available in configurations that can operate in a Hot Standby redundant setup.
RSTi-EP CPE200
RSTi-EP CPE200 is a new family of compact processing units with extensive communication options for connecting with other systems. Versatile connectivity is provided by three built-in Ethernet interfaces. The powerful processors, combined with RSTi-EP input/output modules and Profinet I/O units such as RSTi-EP or VersaMax, offer a cost-effective solution for smaller distributed control systems.
VersaMax
The VersaMax family of modular controllers is characterized by an innovative design, allowing the VersaMax system to be used either as a programmable logic controller (with a CPU) or as an input/output unit in distributed control systems. Each system can support up to 64 input/output modules and control up to 2048 points, with hot-swap capability. It offers a broad range of input/output modules with up to 32 connection terminals. VersaMax can also be connected as a distributed input/output unit (Profibus, Profinet, Modbus/TCP) in networks with other Emerson controller families.
RSTi-EP
The RSTi-EP I/O family comprises compact distributed I/O units designed for applications with lower I/O signal density, where users have limited installation space for units and terminal blocks but require robust systems with a wide operating temperature range. Available interfaces include Profinet, Profibus and Modbus TCP, along with a wide selection of input/output modules for various signal types. Combined with RSTi-CPE200 processors, RSTi-EP input/output modules provide a cost-effective modular control system tailored to user requirements.
RXi2
PACSystems RXi2 represents a compact, high-performance family of industrial computers designed for the most demanding users. Its robust design makes it ideal for SCADA and Historian applications in the most challenging industrial environments. The patented passive cooling technology enables reliable system operation even in higher ambient temperatures, and the use of COM Express processing boards ensures exceptional resistance to vibration. IPC computers are available in various configurations tailored to user needs.
RXi - PC ploča
RXi – Panel PC is modular and available in configurations such as a stand-alone panel PC, a web HMI panel, or an industrial monitor. This allows users to choose a cost-optimized system according to their needs. All RXi systems are ruggedly built for industrial environments, with an operating temperature range of -20°C to +65°C and IP66-rated front panels when mounted. The front panel is made from scratch- and impact-resistant reinforced glass. Users can choose between panel sizes ranging from 7 to 24 inches, with higher luminance versions available for outdoor systems.
Softver
Pac Machine Edition is an integrated software environment for developing user applications. It includes software modules for programming PLCs, distributed units, softPLC controllers, a system visualization module, and a motor drive controller module. The basic software module (Logic Developer – PLC) also enables configuration of controller communication interfaces for Ethernet, Profibus DP, Profinet, Modbus, DeviceNet and Genius. Pac Machine Edition complies with the IEC61131-3 standard. Its extensive interactive help system makes it easy to use even for less experienced users. Complete integration of all components with a single graphical interface and database accelerates user application development.
Program Manager Emerson and Opto 22
Jaroslav Toličič, M.Sc.
